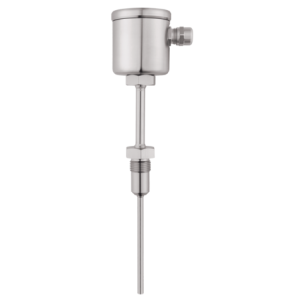

Jumo RTD Temperature Probes Type 902810
The RTD temperature probes can be built with terminal heads made of stainless steel or die-cast aluminum.
Various process connections are available for the different requirements of sub-areas in the food/pharmaceutical industry. These include screw connections G 3/8, G 1/2 with CIP-compliant conical seal, taper sockets with union nut (dairy pipe fitting), clamping sockets (clamp), movable ball welding sockets with threaded fitting, welding sockets with CIP-compliant conical seal, VARIVENT® connections, and ball welding sleeves.
Additionally, basic types 902810/40 and 902810/41, which are designed for use with hygienic thermowells according to data sheet 902812, are available. The protection tubes are made of stainless steel. The RTD temperature probes for the food/pharmaceutical industry are suitable for use in a temperature range from -50 to +250 °C. High accuracy is ensured by single or double Pt100 temperature sensors according to DIN EN 60751, class A.
Optional analog or programmable two-wire transmitters can be used for longer transmission distances.
