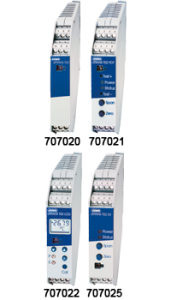

JUMO dTRANS T02 – Four-Wire Transmitter 707020
JUMO dTRANS T02 transmitters are equipped with a microprocessor for digital signal processing. The input and the output are galvanically isolated. The device can be mounted on DIN rails. Electrical connection is made using screw terminals for strand or wire (conductor cross section max. 2.5 mm²).
Depending on the type, the output signal 0/4 to 20 mA or 0/2 to 10 V is provided linearized (temperature-linear), or optionally, reversed. The PC setup program, which is available as an accessory, can be used to program the transmitter (probe type, measuring range, output behavior, fine adjustment, customer-specific linearization).
For types 707021/… and 707022/… it is also possible to program the limit value monitoring and the frequency output.
Current and voltage output are provided directly at connection terminals. No work on the hardware is required.
