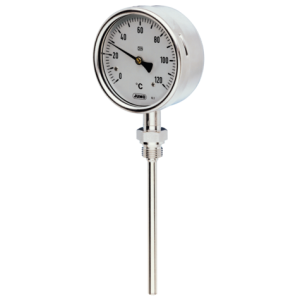

Jumo Bimetal Dial Thermometer 608003
Brief description
The locally displaying bimetal thermometers (chemistry version) work according to the principle of a bimetal coil. The measuring principle is based on the fact that the bimetal coil is exposed to the medium temperature in a stainless steel protection tube. The coil rotates as the temperature increases or falls. The rotation acts directly on the indicator via an axis. The indicator deflection is therefore proportional to the change of temperature.
All versions of the JUMO bimetal dial thermometer 608003 comply with DIN EN 13190, class 1. JUMO precision bimetal dial thermometers are the proven solution for local temperature measurements of both liquids and gases. They are suitable for insertion in pipelines, containers, machines and plants and do not require any external power source. Thanks to the high protection rating (IP65) and the lack of sensitivity to fluctuations in the ambient temperature due to the measuring principle, we also recommend these versions for outdoor use.
Special features
• Class 1
• Display ranges -50°C to +500°C
• Stainless steel case with bayonet connection
• Case sizes ∅: 100 mm and 160 mm
• Protection type IP65
