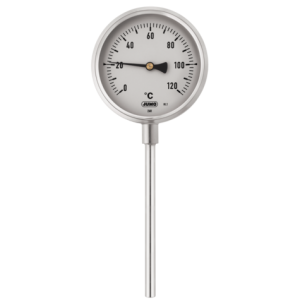

Jumo Bimetal Dial Thermometer 608001
Brief description
The locally displaying standard thermometers work according to the principle of a bimetal coil. The measuring principle is based on the fact that the bimetal coil is exposed to the medium temperature in a stainless steel or brass protection tube. The coil rotates as the temperature increases or falls. The rotation acts directly on the indicator via an axis. The indicator deflection is therefore proportional to the change of temperature.
Special features
• Class 1.5
• Display ranges -50°C to +500°C
• Steel case zinc-plated
• Case sizes ∅: 63 mm, 80 mm and 100 mm
• Protection type IP 51
