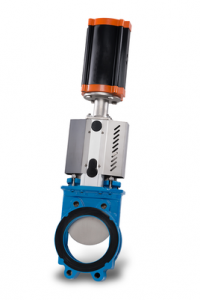

EBRO Knife Gate WB / WB 11 Valve
EBRO Wafe Type Knife Gate valve for water applications WB / WB 11. These valves are all bi-directional and can therefore be installed into pipe systems independent of pressure direction. Full bore and excellent flow characteristics makes them suitable for fluids, sludge and liquids with solids in suspensions such as water, sewage and bio mass.
Technical data
Nominal diameter:
DN 50 – DN 300, WB11
DN 350 – DN 1600, WB
DN 350 – DN 1600, WB
Face-to-face:
EN 558-1 series 20
ISO 5752 series 20
ISO 5752 series 20
Flange accommodation:
DN 50 – DN 300:
EN 1092 PN 10
ASME/ANSI B 16.5 Class 150
DN 350 – DN 1600:
EN 1092 PN 10
>= DN 700:
ANSI B16.47 Class 150, series A
AS 2129 Table D and E
EN 1092 PN 10
ASME/ANSI B 16.5 Class 150
DN 350 – DN 1600:
EN 1092 PN 10
>= DN 700:
ANSI B16.47 Class 150, series A
AS 2129 Table D and E
Marking:
EN 19
Tightness check:
EN 12266 (Leakage Rate A)
ISO 5208 Class A
ISO 5208 Class A
Temperature range:
max. 120 °C
Actuator:
Hand wheel, chain wheel, pneumatic cylinder, electric motor, hydraulic cylinder
Max. Operating pressure:
DN 50 – DN 300, 10 bar
DN 350 – DN 400, 6 bar
DN 500 – DN 600, 4 bar
DN 700 – DN 1200, 6 bar
DN 1400 – DN 1600, 4 bar
DN 350 – DN 400, 6 bar
DN 500 – DN 600, 4 bar
DN 700 – DN 1200, 6 bar
DN 1400 – DN 1600, 4 bar
