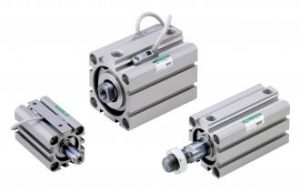

CKD Compact cylinder SSD2 Series

Space saving series with a wide range of stroke lengths and switch mounting surface options compared with conventional models.
A widely varied series of space-saving cylinders, suitable for everything from general environments to specific applications.

[Cylinder switch grooves provided on four surfaces] (Excluding φ12, 16)
A cylinder switch can be mounted on the same surface as the piping port, which improves visibility and maintenance efficiency.

[End thread options]
Rod ends can be selected from two options: female thread (standard) and male thread (option).

[All bore sizes, T type switch mountable]
The T type switch used in many CKD products can be mounted on cylinders of all bore sizes.
The use of a unified switch helps to reduce stock quantity.

Variations

Model No.	Product name	Bore size
SSD2	Double acting / single rod	φ12, φ16, φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100, φ125, φ140, φ160, φ180, φ200
SSD2-K	Double acting / single rod / high load	φ12, φ16, φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100
SSD2-X	Single acting / push	φ12, φ16, φ20, φ25, φ32, φ40, φ50
SSD2-Y	Single acting / pull	φ12, φ16, φ20, φ25, φ32, φ40, φ50
SSD2-T1	Double acting / heat resistance	φ12, φ16, φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100
SSD2-T1L	Double acting / heat resistance / with compact heat resistant switch	φ12, φ16, φ20, φ25, φ32, φ40, φ50, φ63
SSD2-K-※C	Double acting / high load / rubber-air cushioned	φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100
SSD2-Q	Double acting / position locking	φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100
SSD2-F	Double acting / fine speed	φ12, φ16, φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100
SSD2-KF	Double acting / high load / fine speed	φ12, φ16, φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100
SSD2-O	Double acting / low speed	φ12, φ16, φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100
SSD2-KU	Double acting / high load / low friction	φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100
SSD2-D	Double acting / double rod	φ12, φ16, φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100, φ125, φ140, φ160, φ180, φ200
SSD2-B	Double acting / back to back	φ12, φ16, φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100
SSD2-W	Double acting / two-stage	φ12, φ16, φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100
SSD2-M	Double acting / rotation-stop	φ12, φ16, φ20, φ25, φ32, φ40, φ50, φ63
SSD2-DM	Double acting / double rod / rotation-stop	φ12, φ16, φ20, φ25, φ32, φ40, φ50, φ63
SSD2-G	Double acting / single rod / rubber scraper	φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100
SSD2-G1	Double acting / coil scraper	φ25, φ32, φ40, φ50, φ63, φ80, φ100
SSD2-KG1	Double acting / high load / coil scraper	φ25, φ32, φ40, φ50, φ63, φ80, φ100
SSD2-DG1	Double acting / double rod / coil scraper	φ25, φ32, φ40, φ50, φ63, φ80, φ100
SSD2-G2	Double acting / coolant proof (packing: NBR)	φ16, φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100
SSD2-G3	Double acting / coolant proof (packing: FKM)	φ16, φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100
SSD2-KG2	Double acting / high load / coolant proof (packing: NBR)	φ16, φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100
SSD2-KG3	Double acting / high load / coolant proof (packing: FKM)	φ16, φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100
SSD2-G4	Double acting / anti-spatter adherence	φ25, φ32, φ40, φ50, φ63, φ80, φ100
SSD2-KG4	Double acting / high load / anti-spatter adherence	φ25, φ32, φ40, φ50, φ63, φ80, φ100
SSD2-DG4	Double acting / double rod / anti-spatter adherence	φ25, φ32, φ40, φ50, φ63, φ80, φ100
SSD2-G5	Double acting / environment-resistant scraper	φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100
SSD2-KG5	Double acting / high load / environment-resistant scraper	φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100
SSD2-L4	Double acting / with strong magnetic field proof switch	φ40, φ50, φ63, φ80, φ100
SSD2-G1L4	Double acting / coil scraper / with strong magnetic field proof switch	φ40, φ50, φ63, φ80, φ100
SSD2-KL4	Double acting / high load / with strong magnetic field proof switch	φ40, φ50, φ63, φ80, φ100
SSD2-KG1L4	Double acting / high load / coil scraper / with strong magnetic field proof switch	φ40, φ50, φ63, φ80, φ100
SSD2-P7※	Double acting / clean-room specifications	φ12, φ16, φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100, φ125, φ140, φ160
SSD2-P5※	Double acting / clean-room specifications	φ12, φ16, φ20, φ25, φ32, φ40, φ50, φ63, φ80, φ100, φ125, φ140, φ160
