Jual Atos Valve DKZOR-A

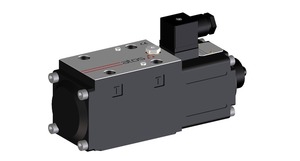

Jual Atos Valve DKZOR-A. Proportional directional valve without transducer, direct operated, positive overlap
Size 10
Qmax 160 l/min
Pmax 315 bar
Jual Atos Valve DKZOR-AJual Atos Valve DKZOR-A. Proportional directional valve without transducer, direct operated, positive overlap
Size 10
Qmax 160 l/min
Pmax 315 bar
| Power Supplier | Nominal (+24 VDC)
Rectified and filtered (VRMS = 20 ÷ 32 VMAX |
| Max Power Consumption | A = 30 W / AEB, AES = 50 W |
| Coil Voltage Code | Standart / Option (6) / Option (18) |
| Max. Solenoid Current | 2,2 A / 2,75 A / 1 A |
| Coil Resistance R at 20oC | 3 ÷ 3,3 Ω / 2 ÷ 2,2 Ω / 13 ÷ 13,4 Ω |
| Analog Input Signals | Voltage (range ±10 VDC) , Current (range ±20mA) |
| Monitor Output | Voltage ±5 VDC @max 5 mA |
| Enable Input | 0 ÷ 9 VDC (OFF State), 15 ÷ 24 VDC (ON State), 9 ÷ 15 VDC (not accepted)
Ri > 87 kΩ |
| Fault Output | 0 ÷ 24 VDC (ON State = VL + [logic power supply]; OFF State = 0 V) @ max 50 mA |
| Pressure Transducer Power Supply | +24VDC @max 100 mA (E-ATR-8 see tech table GS465) |
| Alarms | Solenoid not connected/short circuit, cable break with current reference signal, over/under temperature, current control monitoring, power supplies level, pressure transducer failure |
| Insulation Class | H (180o) Due to the accoring surface temperatures of the solenoid coils, the European standards ISO 13732-1 and EN982 must be take into account |
| Protection degree to DIN EN60529 | A = IP65; AEB, AES = IP66 / IP67 with mating connectors |
| Duty Factor | Continuous Rating (ED=100%) |
| Tropicalization | Tropical coating on electronics PCB |
| Additional Characteristics | Short circuit protection of solenoid’s current supply; current control by P.I.D with rapid solenoid switching; protection against reverse polarity of power supply |
| Communication Interface | USB Atos ASCII Coding / CANopen EN50325-4 + DS408 / PROFIBUS DP EN50170-2(IEC61158) / EtherCAT EC 61158 |
| Communication Physical Layer | Not Insulated USB 2.0 + USB OTG / Optical Insulated CAN ISO11898 / Optical Insulated RS485 / Fast Ethernet, Insulated 100 Base TX |
| Recommended Wiring Cable | LiYCY shielded cable |
MERAPINDO CV, adalah perusahaan yang berasal dari indonesia. pengalaman menjadi distributor dan supplier yang menjual brand Atos merupakan salah satu dari sekian banyak brand yang kami dapat sediakan untuk pelanggan kami di indonesia.
Atos Valve DKZOR-A merupakan spare part penting dalam dunia industri, seiring semakin berkembangnya dunia industri merupakan salah satu alasan kami medistribusikan dan menjual spare part serta alat – alat brand Atos untuk kebutuhan industri yang ada di Indonesia.
Atos Valve DKZOR-A yang kami jual adalah 100% original yang berasal dari produsen langsung, kami selalu memastikan barang yang kami jual adalah 100% kualitas dan mutu terjamin melalui tahap QC yang sempurna.
Atos Valve DKZOR-A yang kami jual memiliki banyak tipe yang tersedia, jadi pastikan spesifikasi teknis yang sesuai dengan kebutuhan industri anda.
Jika anda sudah tahu tipe Atos apa yang anda butuhkan?
5 Keuntungan dari pelayanan kami adalah sebagai berikut :
Untuk permintaan penawaran harga dan stok Atos Valve DKZOR-A hubungi kami dibawah ini :
MERAPINDO, CV
Industrial Genuine Parts Specialized
Jl. Kaliurang Km 10 Perum Palm Kencana Kav 7
Nglaban, Sinduharjo, Ngaglik, Sleman, Yogyakarta 55581
Indonesia
Telp : 0274-2834077
Handphone : 081392000636
E-mail : info@merapindo.com
E-mail : merapindo@yahoo.com
Perusahaan kami berkembang sangat pesat dan mampu memenuhi semua kebutuhan Anda khusus nya brand Atos dan lainya meliputi bidang Automation System dan Electrical Components Pneumatic Hydraulic dan juga Controls System.
